Instrumented Indentation Tester (Non-Destructive Test) is an All-in-one testing equipment for evaluating mechanical properties (yield strength, tensile strength, elasticity modulus, Strain hardening index) in Non-Destructive way called Instrumented Indentation Technique. When it was first developed, it has been called different names such as automated indentation tester, instrumented indentation tester (Non Destructive Test) and portable Indentation tester, but for external activities and promotion, we now use integrated name of “Instrumented Indentation Tester (Non Destructive Test)”.

2

Instrumented Indentation Tester (Non-Destructive Test) is composed and classified as evaluating properties and case, and the model name is “AIS”. “AIS” is stand for Advanced Indentation System which is addressing integrated instrumented indentation tester (Non Destructive Test), and we have named or numbered models as its features and evaluating properties. (eg. AIS2000(now, AIS2100): Tensile properties evaluation, AIS3000: residual stress measuring model, etc)

3

Instrumented Indentation Tester (Non-Destructive Test) continually measures indentation depth depend on the indentation load to testing material, and obtains indentation load displacement curve. Obtained data is automatically transferred to computer with wire or wireless. Based on this, it is equipment that allows user to analyze the material properties and prepare a report by clicking simplified program. As it is published as KS B0950, B0951, ISO/TR 29381, KEPIC code MDF A370 and ASME Code case 2703, the technology has been recognized.

Classification & Feature

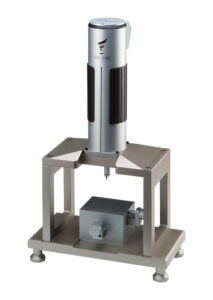

AIS2100

Type Laboratory & On-site
Test Scale Macro
Test Item Tensile Properties
Hardness (Option)
Fracture toughness (Option)

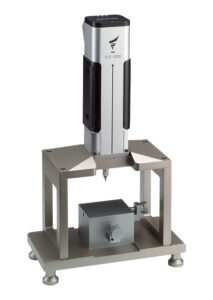

AIS3000

Type Laboratory & On-site
Test Scale Macro
Test Item Residual Stress
Tensile Properties
Hardness (Option)
Fracture toughness (Option)

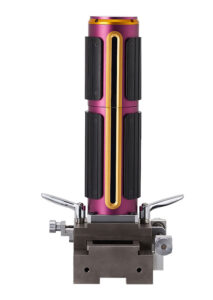

AIS3000 Compact

Type Laboratory & On-site
Test Scale Macro
Test Item Residual Stress
Tensile Properties
Hardness (Option)
Fracture toughness (Option)

AIT-U

Type Laboratory
Test Scale Macro
Test Item Tensile Properties
Hardness (Option)
Fracture toughness (Option)

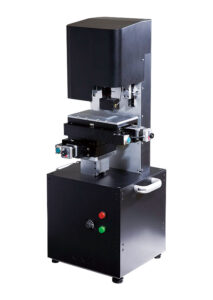

Micro AIS

Type Laboratory
Test Scale Micro
Test Item Residual Stress
Tensile Properties
Hardness (Option)

Main Usage

Receiving Test



It is possible to check quality of materials, whether the materials are suitable for basic standard(CMTR or Mill sheet) or not or it’s possible to check the quality or defective product through the materials of structure under construction is screened

Stability assessment



Securing integrity or degradation evaluation of structure by monitoring periodic properties transformation of the structure operating in industry

Reliability assessment
for welding part

Coming up with an effective counterplan or integrity assessment of industrial facilities or welded structures

Failure analysis


Accident investigation through root cause analysis when a safety accident happens caused by destruction or deformation of the structures

Equipment Use State

AIS-Series usage classified by industry

  • Power generating : 23%
  • Petrochemicals : 20%
  • Transportation : 4%
  • Research institute : 37%
  • Steel /Shipbuilding : 12%
  • Other : 4%

AIS-Series usage classified by purpose

  • Introductory subsidiary materials : 15%
  • Reliability of the welded area : 30%
  • Safety Inspection : 30%
  • Analyzing damage causes : 25%
